Description
Product Specifications:
Software Requirements
- OS
- Thunderbolt
- OS X 10.9.3 or later
- Windows 7 or later
- USB 3.1 Gen 1
- OS X 10.6.8 or later
- Windows XP or later
- Thunderbolt
- Driver
- Driver not required for OS X
- Driver not required for Windows
Hardware Requirements
- Minimum
- Mac or PC featuring Thunderbolt or USB 2.0 interface
- Recommended (Best Performance)
- Mac or PC featuring Thunderbolt 2 or USB 3.1 Gen 1 interface
Bootability
- Thunderbolt: Any Mac that supports booting via Thunderbolt
- USB: Any Mac that supports booting via USB

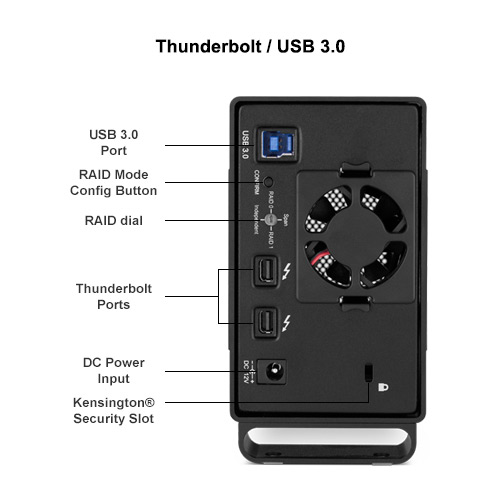

Interface (Chipset)
- (2) Thunderbolt 20Gbps
- (1) USB 3.1 Gen 1 (ASMedia ASM1153E)
- SATA controller (ASMedia ASM1062)
- RAID controller (ASMedia ASM1092R)
UASP (USB Attached SCSI Protocol) Compliant
- Yes

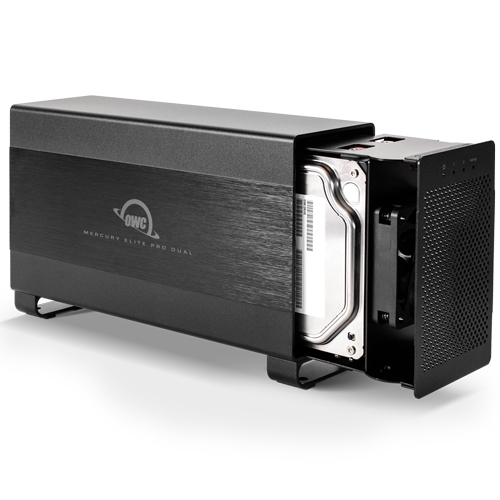

Drive(s) Supported
- (2) 3.5″ SATA 6Gb/s drives
- (2) 2.5″ SATA 6Gb/s drives 1
- SATA revision 3.0 (6Gb/s) compliant
- Compatible with SATA revisions 2.0 (3Gb/s) and 1.0 (1.5Gb/s)
Performance
- Thunderbolt 2
- Compressible Data: 474 MB/s Read and 474 MB/s Write
- Incompressible Data: 410 MB/s Read and 405 MB/s Write
- USB 3.1 Gen 1
- Compressible Data: 416 MB/s Read and 393 MB/s Write
- Incompressible Data: 386 MB/s Read and 393 MB/s Write
- Note(s)
- Speeds will vary based on drives used, setup, and other factors.
RAID Modes Supported
- Hardware
- RAID 0, 1, SPAN, and Independent drive mode
Initial Configuration
- Empty
Power
- Power Supply
- External UL-listed universal auto-switching
- AC input: 100 ~ 240V, 50/60Hz
- DC output:, 12V @ 6A
- Replacement power supply sold separately
Environment
- Environmental (Operating)
- Temperature (°F) 32° — 107°
- Temperature (°C) 0° — 42°
- Environmental (Non-Operating)
- Temperature (°F) &min;40° — 149°
- Temperature (°C) &min;40° — 65°
Height
- 135 mm (5.3 in)
Width
- 72 mm (2.8 in)
Length
- 226 mm (8.9 in
Weight (without drives)
- 1.1 kg (2.5 lbs.)
