Description
English Descriptions :

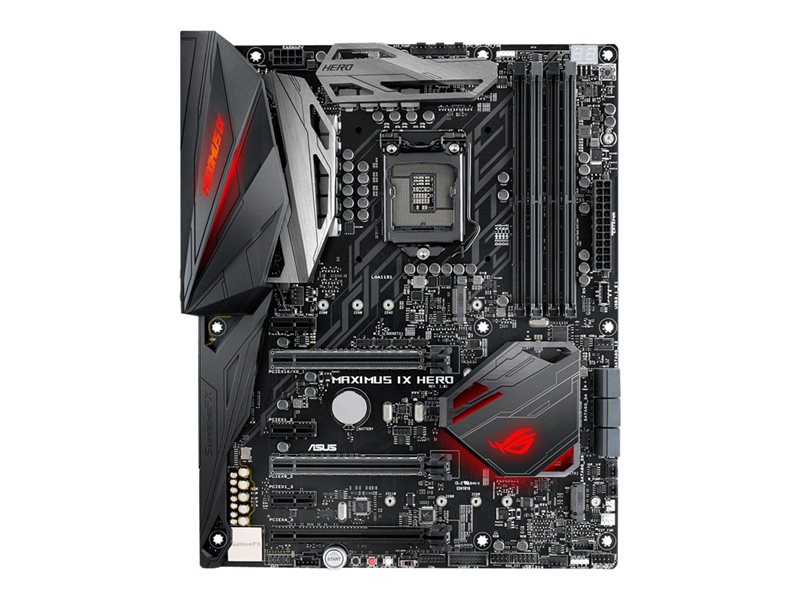

Product Type Motherboard – ATX
Intel Z270 Express chipset
Processor Socket LGA1151
Maximum number of processors 1
Pentium, Celeron, Core i5, Core i3, Core i7 (supports Intel Core 6th and 7th generation i3 / i5 / i7 / Pentium / Celerom)
RAM supported
Maximum size 64 GB
DDR4 technology
(OC), 3,200 MHz (OC), 3,200 MHz (OC), 3300 MHz (OC), 3400 MHz (OC) 3333 MHz, 3466 MHz, 3733 MHz (OC), 3600 MHz (OC), 3866 MHz (OC), 4000 MHz (OC), 4133 MHz (OC)
Supported RAM integrity check No ECC
Registered or with buffer Unbuffered memory
Features Two-channel memory architecture, Intel XMP profiles (Extreme Memory Profile)
Graphic
Maximum allocated RAM size 1 GB
audio
HD Audio Type (8 channels)
Audio Codec SupremeFX (S1220)
High Definition Audio
LAN
Intel I219V Network Controller
Gigabit Ethernet Network Interfaces
Expansion / Connectivity
Expansion Slots 1 x CPU
4 x DIMM 288-pin
2 x PCIe 3.0 x16
1 x PCIe 3.0 x16 (x 2 mode)
3 x PCIe 3.0 x1
Storage Interfaces SATA-600-Connectors: 6-pin serial ATA – RAID 0 / RAID 1 / RAID 10 / RAID 5
SATA-600 / PCIe 3.0 -connectors: 1 x M.2
PCIe 3.0 -connectors: 1 x M.2
RAID Features Intel Rapid Storage Technology
Interfaces 1 x HDMI
1 x DisplayPort
1 x USB 3.1
1 x USB-C
4 x USB 3.0
1 x LAN (Gigabit Ethernet)
1 x audio line-in – mini-jack
1 x audio line out – mini jack
1 x microphone – mini jack
1 x audio line out (center / subwoofer) – mini jack
1 x audio line-out (rear) – mini-jack
4 x USB 2.0
1 x TOSLINK
Internal Interfaces 2 x USB 2.0 – connector
2 x USB 3.0 – connector
1 x USB 3.1 – connector
1 x Thunderbolt – connector
1 x audio – connector
Power Connectors 24-pin auxiliary power connector, 8 pin ATX12V connector
functions
AMI BIOS Type
BIOS features Support for WfM 2.0, Multilingual BIOS, ASUS OC Profile, UEFI BIOS, ASUS EZ Flash 3, DMI 3.0 support, SMBIOS 3.0 support, ACPI support 6 , 0
Standby / Alarm clock Network alarm clock (WOL), alarm clock
ASUS Q-Connector, ASUS Q-Connector, ASUS Q-Connector, ASUS Q-Design, ASUS Q-Design, ASUS Q-Design, Jack-detect, ASUS EPU (Energy Processing Unit), ASUS Q-Shield, ASUS Loadline Calibration, Intel Extreme Memory Profile (XMP) support, NVIDIA 2-way SLI technology support, Intel Turbo Boost Technology 2.0, ASUS TPU (TurboV Processing Unit), ASUS DIGI + VRM, Intel Smart Response Technology, SupremeFX Shielding technology, 3-way CrossFireX AMD support, Onboard Button, Preboot eXecution Environment (PXE), Dual Intelligent Processors 5, The ASUS Fan Xpert 4, ASUS SafeSlot, Easy 3D Printing, Intel Optane Memory Ready, Sonic Radar III, Sonic Studio III, Mem, ASUS PRO Clock Technology, KeyBot II, ROG SSD Secure Erase, ASUS Gamer’s Guardian TweakIt
Various
Included Accessories Cable Labels, 1 M.2 Screw, Rear I / O Cover, ROG Fan Stickers, GOR Coaster, RGB LED Strip Extension Cable (RGBW), 3D Printer Mount Kit
Cables Included 4 x Serial ATA Cable
1 x SLI bridge
Software Included Drivers & Utilities, ROG CPU-Z, ROG RAMDisk, Overwolf, ASUS EZ Flash 3, AOG ROG, ROG GameFirst IV, ASUS ROG RAMCache II, ROG CloneDrive, ASUS Turbo Core App
Plug and Play Compliant Standards
Width 30.5 cm
Depth 24.4 cm
Manufacturer Warranty
Service & Support Limited warranty – 3 years
Google Translate for Business:Translator ToolkitWebsite Translator
French Descriptions :
Type de Produit Carte-mère – ATX
Jeu de puces Intel Z270 Express
Port du Processeur Socket LGA1151
Nbre maximum de processeurs 1
Processeurs Compatibles Pentium,Celeron,Core i5,Core i3,Core i7 (supporte Intel Core 6ème et 7ème génération i3/i5/i7/Pentium/Celerom)
RAM prise en charge
Taille maximale 64 Go
Technologie DDR4
Horloge de bus 2800 MHz (O.C.),2666 MHz (O.C.),2400 MHz (O.C.),2133 MHz (O.C.),3000 MHz (O.C.),3200 MHz (O.C.),3300 MHz (O.C.),3400 MHz (O.C.),3333 MHz (O.C.),3466 MHz (O.C.),3733 MHz (O.C.),3600 MHz (O.C.),3866 MHz (O.C.),4000 MHz (O.C.),4133 MHz (O.C.)
Contrôle d’intégrité de RAM pris en charge Non ECC
Enregistré ou avec tampon Mémoire sans tampon
Fonctions Architecture de mémoire bicanal,profiles Intel XMP (Extreme Memory Profile)
Graphique
Taille maximum de RAM allouée 1 Go
Audio
Type Audio HD (8 canaux)
Audio Codec SupremeFX (S1220)
Conformité aux normes Audio haute définition
LAN
Contrôleur réseau Intel I219V
Interfaces réseau Gigabit Ethernet
Extension/connectivité
Logements d’extension 1 x CPU
4 x DIMM 288-pin
2 x PCIe 3.0 x16
1 x PCIe 3.0 x16 (mode x 2)
3 x PCIe 3.0 x1
Interfaces de stockage SATA-600 -connecteurs:6 ATA série 7 broches – RAID 0 / RAID 1 / RAID 10 / RAID 5
SATA-600 / PCIe 3.0 -connecteurs:1 x M.2
PCIe 3.0 -connecteurs:1 x M.2
Fonctionnalités RAID Intel Rapid Storage Technology
Interfaces 1 x HDMI
1 x DisplayPort
1 x USB 3.1
1 x USB-C
4 x USB 3.0
1 x LAN (Gigabit Ethernet)
1 x entrée de ligne audio – mini-jack
1 x sortie de ligne audio – mini-jack
1 x microphone – mini-jack
1 x sortie de ligne audio (centre/caisson de basses) – mini-jack
1 x sortie de ligne audio (arrière) – mini-jack
4 x USB 2.0
1 x TOSLINK
Interfaces internes 2 x USB 2.0 – connecteur
2 x USB 3.0 – connecteur
1 x USB 3.1 – connecteur
1 x Thunderbolt – connecteur
1 x audio – connecteur
Connecteurs d’alimentation Connecteur d’alimentation auxiliaire 24 broches,connecteur ATX12V 8 broches
Fonctions
Type du BIOS AMI
Fonctions du BIOS Prise en charge de WfM 2.0,BIOS multilingue,ASUS O.C. Profile,UEFI BIOS,ASUS EZ Flash 3,prise en charge de DMI 3,0,prise en charge de SMBIOS 3,0,prise en charge d’ACPI 6,0
Veille / Réveil Réveil par réseau (WOL),réveil par PME
Caractéristiques matérielles Jack retasking,protection ASUS anti-surtension,MemOK!,ASUS Q-Design,ESD Guards,Q-DIMM,ASUS EZ DIY,Q-LED,ASUS Extreme Engine Digi+,CrashFree BIOS 3,ASUS Q-Connector,technologie audio jack-detect,ASUS EPU (Energy Processing Unit),ASUS Q-Shield,ASUS Loadline Calibration,prise en charge d’Extreme Memory Profile (XMP) d’Intel,support pour la technologie 2-way SLI NVIDIA,Intel Turbo Boost Technology 2.0,ASUS TPU (TurboV Processing Unit),ASUS DIGI+ VRM,technologie Intel Smart Response,technologie SupremeFX Shielding,prise en charge de la technologie AMD 3-way CrossFireX,Onboard Button,Preboot eXecution Environment (PXE),Dual Intelligent Processors 5,LANGuard,ASUS PRO Clock Technology,KeyBot II,ROG SSD Secure Erase,ASUS Gamer’s Guardian,AURA RGB Lighting Control,ASUS Fan Xpert 4,ASUS SafeSlot,impression 3D facile,Intel Optane Memory Ready,Sonic Radar III,Sonic Studio III,Mem TweakIt
Divers
Accessoires inclus Étiquettes de câble,1 vis M.2,capot arrière E/S,autocollants pour ventilateurs ROG,caboteurs GOR,câble d’extension de bande LED RGB (RGBW),kit de montage pour imprimante 3D
Câbles inclus 4 x câble série ATA
1 x pont SLI
Logiciel inclus Pilotes de périphérique & utilitaires,ROG CPU-Z,ROG RAMDisk,Overwolf,ASUS EZ Flash 3,ROG Aura,ROG GameFirst IV,ASUS ROG RAMCache II,ROG CloneDrive,ASUS Turbo Core App
Certificats de conformité Plug and Play
Largeur 30.5 cm
Profondeur 24.4 cm
Garantie du fabricant
Services & maintenance Garantie limitée – 3 ans
Dutch Description :
Product Type Moederbord – ATX
Game Z270 Intel Express-chipset
Processor Socket Socket LGA1151
Max Processors aantal 1
Compatibele processors Pentium, Celeron, Core i5, Core i3, Core i7 (ondersteunt Intel Core 6e en 7e generatie i3 / i5 / i7 / Pentium / Celerom)
RAM Ondersteunde
maximaal 64 GB
DDR4 technologie
2800 MHz busklok (OC), 2666 MHz (OC), 2400 MHz (OC), 2133 MHz (OC), 3000 MHz (OC), 3200 MHz (OC), 3300 MHz (OC), 3400 MHz (OC) , 3333 MHz (OC), 3466 MHz (OC), 3733 MHz (OC), 3600 MHz (OC), 3866 MHz (OC), 4000 MHz (OC), 4133 MHz (OC)
RAM ECC Ondersteund Not
Geregistreerde of ongebufferde buffer
Kenmerken Dual-channel geheugen architectuur, Intel XMP profielen (Extreme Memory Profile)
grafisch
Maximaal toegewezen RAM-grootte 1 GB
audio
Type HD Audio (8-kanaals)
SupremeFX Audio codec (S1220)
Naleving van de High-definition audio-normen
LAN
Intel I219V Network Controller
Gigabit Ethernet-interfaces
Uitbreiding / Aansluiting
Expansion slots 1 x CPU
4 x DIMM 288-pin
2 x PCIe 3.0 x16
1 x PCIe 3.0 x16 (gebruiker x 2)
3 x 3,0 PCIe x1
SATA storage interfaces 600 – Aansluitingen 6 7 pens seriële ATA – RAID 0 / RAID 1 / RAID 10 / RAID 5
SATA-600 / PCIe -Connectors 3,0: 1 x M.2
PCIe -Connectors 3,0: 1 x M.2
Intel Rapid Storage Technology RAID Features
Interfaces 1 x HDMI
1 x DisplayPort
1 x USB 3.1
1 x USB-C
4 x USB 3.0
1 x LAN (Gigabit Ethernet)
1 x audio line – mini-aansluiting
1 x audio line – mini-aansluiting
1 x microfoon – mini-jack
1 x audio line (midden / subwoofer) – mini-jack
1 x geluidsuitvoer (achter) – ministekkerbus
4 x USB 2.0
1 x TOSLINK
Interne interfaces 2 x USB 2.0 – connector
2 x USB 3.0 – aansluiting
1 x USB 3.1 – aansluiting
1 x Thunderbolt – connector
1 x audio – aansluiting
vermogensconnectoren hulpvoedingsaansluiting 24 pins ATX12V 8 pins
functies
BIOS Type AMI
BIOS Features Ondersteunt WfM 2.0-ondersteuning, meertalige BIOS, ASUS OC Profile, UEFI BIOS, ASUS EZ Flash 3, Steun voor DMI 3.0, ondersteuning voor SMBIOS 3.0, ondersteunt ACPI 6 , 0
Sleep / Wake Wake on LAN (WOL), wake voor het MKB
Hardwarekenmerken Jack retasking, ASUS overspanningsbeveiliging, MemOK! ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY Q-LED, ASUS Extreme Engine Digi +, CrashFree BIOS 3 ASUS Q-Connector, audiotechnologie jack-sporen, ASUS EPU (Energy Processing Unit), ASUS Q-Shield ASUS Loadline Calibration, ondersteunen Extreme Memory Profile (XMP) van Intel, ondersteuning voor 2-weg SLI-technologie, NVIDIA, Intel Turbo Boost-technologie 2.0 ASUS TPU (TurboV Processing Unit), ASUS DIGI + VRM, Intel Smart Response technologie, technologie SupremeFX bescherming, steun technologie AMD 3-way CrossFireX, Onboard Button, Preboot Execution Environment (PXE), Dual Intelligent Processors 5 LANguard, ASUS PRO Klok Technology KeyBot II ROG SSD Secure Erase, ASUS Gamer’s voogd RGB Lighting control, ASUS Fan Xpert 4, ASUS SafeSlot, gemakkelijk 3D printing, Intel Optane Memory Ready, Sonic Radar III, Sonic Studio III Mem TweakIt
divers
Accessoires inbegrepen Cable Labels, 1 schroef M.2 achterklep I / O, stickers ROG fans, onderzetters GOR band verlengkabel RGB-LED (RGBW) Montage voor 3Dprinter
Kabels meegeleverd 4 x Serial ATA-kabel
1 x SLI bridge
Software meegeleverd Drivers & hulpprogramma’s, ROG CPU-Z, ROG RAMDisk, Overwolf, ASUS EZ Flash 3, Aura ROG, ROG GameFirst IV ASUS ROG RAMCache II ROG CloneDrive, ASUS Turbo Core App
Conformiteitsnormen Plug and Play
Breedte 30.5 cm
Diepte 24,4 cm
Garantie van de fabrikant
Service & Support Beperkte garantie – 3 jaar
